$48.99
Add to Cart

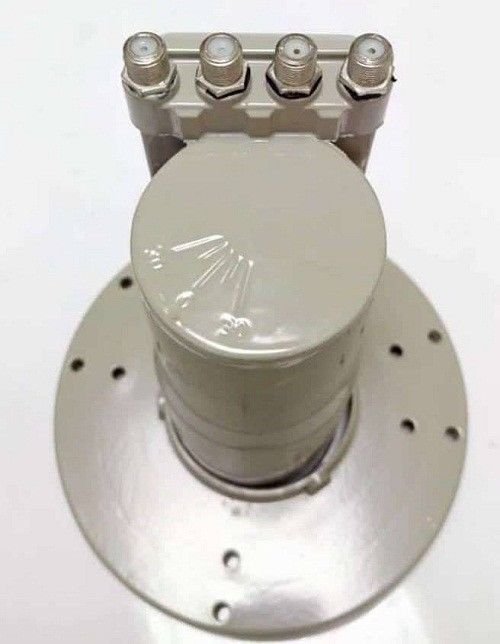

C Band Lnb High quality quad 4 output satellite universal C band lnb lnbf
10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Input Freqency
3.7 to 4.2GHz
L.O.Frequency
5150/5750MHz(±500MHz@25)
L.O.Frequency
±1.5MHz(-40to+70)
Lo leakage input port
45dBm
Output Frequency
950to1450MHz 1550to2050MHz
Noise Figure
13/15/17°K typ
Conversion Gain
65dB typ
Gain Flatness
±1dBm(max)
Input VSWR
2.51(max)
Output VSWR
2.01(max)
Output Connector
F-female Connector
Output Impedance
75Ω
Cross Polar Isolation
20dB(min)
Image Rejection
45dB(min)
Phase Noise
dBc/@10kHz(max)
Supply Voltage
11.5to14.0v(Vertical Polarization)/16.0 to 19.0v(Horizontal polarization)
Operating Temperature
-40oC to +70oC
Stroage Temperature
-40oC to +80oC
Relative Humidity
0% to 95%
Brand Name: BWEIPackage: YesHigh Definition: YesFTA(Free To Air): YesWith USB Wifi: NOType: DIGITALModel Number: BT-380QL.O frequency: 5150/5750MHZOutput frequency: 950-1450MHZ 1550-2050MHZInput frequency: 3.7-4.2GHZusage: satellite signal receiverName: High quality quad 4 output satellit
3.7 to 4.2GHz
L.O.Frequency
5150/5750MHz(±500MHz@25)
L.O.Frequency
±1.5MHz(-40to+70)
Lo leakage input port
45dBm
Output Frequency
950to1450MHz 1550to2050MHz
Noise Figure
13/15/17°K typ
Conversion Gain
65dB typ
Gain Flatness
±1dBm(max)
Input VSWR
2.51(max)
Output VSWR
2.01(max)
Output Connector
F-female Connector
Output Impedance
75Ω
Cross Polar Isolation
20dB(min)
Image Rejection
45dB(min)
Phase Noise
dBc/@10kHz(max)
Supply Voltage
11.5to14.0v(Vertical Polarization)/16.0 to 19.0v(Horizontal polarization)
Operating Temperature
-40oC to +70oC
Stroage Temperature
-40oC to +80oC
Relative Humidity
0% to 95%
Brand Name: BWEIPackage: YesHigh Definition: YesFTA(Free To Air): YesWith USB Wifi: NOType: DIGITALModel Number: BT-380QL.O frequency: 5150/5750MHZOutput frequency: 950-1450MHZ 1550-2050MHZInput frequency: 3.7-4.2GHZusage: satellite signal receiverName: High quality quad 4 output satellit
